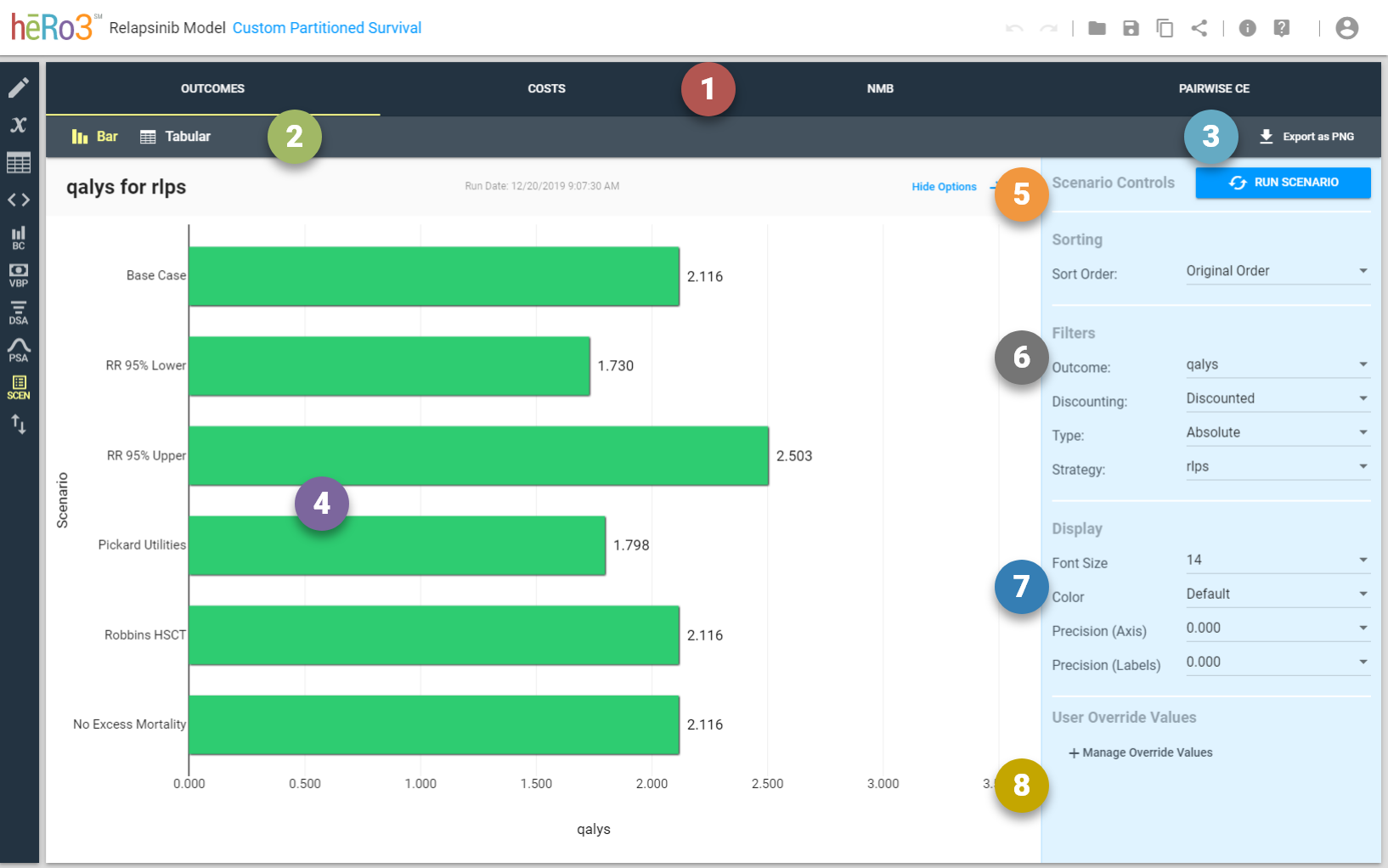

The Scenario Analysis Results page shows the results of running the scenario analysis specified on the Scenario Analysis Inputs page. It can be accessed by clicking on in the Navigation Sidebar and then clicking in the menu that appears to the right. The Scenario Analysis Results page is divided into four tabs: Outcomes, Costs, NMB, and Pairwise CE. The layouts of each of these tabs is as follows.
The Results tabs allow you to navigate between the different types of results shown on this page.
The display modes buttons allow you to toggle between different ways of visualizing the selected data.
The export button allows you to export the currently displayed table or figure.
The display area shows the selected table or chart.
This section allows you to run scenarios by clicking the 'Run Scenario' button. A message is displayed in this section if the inputs to your model have changed at all since the last time you ran the selected scenarios.
The filter configuration section allows you to determine what data will be displayed in the currently selected table or chart. The exact function of the section depends on the result tab, but generally this involves selecting which strategies or outcomes results will be displayed for.
The display configuration section allows you to control various style properties (font size, color schemes, etc.), which affect how the currently selected table or chart is displayed.
User Override Values
The User Overrides section allows you to change the values of inputs to your model. Clicking the ‘Manage Override Values’ button will allow you to select which parameters are shown in this section. Please note that the ‘Manage Override Values’ button may not be visible when opening a shared model, depending on the permissions the owner of a model has granted to you.
